El estudio de la referencia investiga el efecto de diferentes ángulos de incidencia (0°, 22,5° y 45°) en la respuesta a la punción y el rendimiento de varios tipos de textiles protectores. Se diseñaron y probaron tres tipos de textiles tejidos en 3D y telas de tejido liso en 2D con fibras de alto rendimiento y densidad de área similares. La investigación utilizó una nueva configuración experimental que incluyó sensores magnéticos y cuchillos especializados para medir la velocidad de impacto y la energía de impacto ejercida. Los hallazgos revelan que el ángulo de incidencia afecta significativamente la respuesta a la punción y el rendimiento de los textiles protectores. Este estudio proporciona información valiosa para que los fabricantes de textiles protectores, los desarrolladores de armaduras y las organizaciones de normalización consideren el ángulo de incidencia al desarrollar y probar textiles protectores.
Abstract

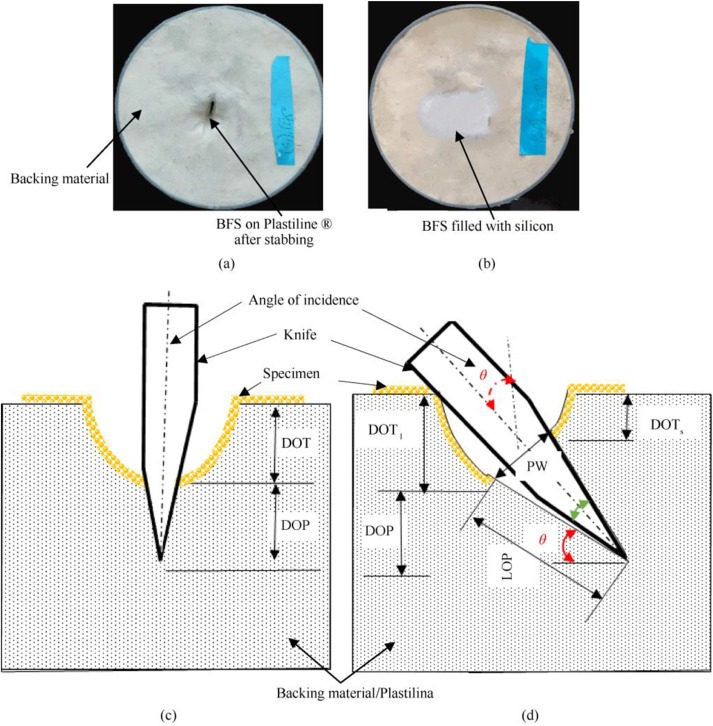

Despite numerous research investigations to understand the influences of various structural parameters, to the authors’ knowledge, no research has been the effect of different angles of incidence on stab response and performance of different types of protective textiles. Three distinct structures of 3D woven textiles and 2D plain weave fabric made with similar high-performance fiber and areal density were designed and manufactured to be tested. Two samples, one composed of a single and the other of 4-panel layers, from each fabric type structure, were prepared, and tested against stabbing at [0°], [22.5°], and [45°] angle of incidence. A new stabbing experimental setup that entertained testing of the specimens at various angles of incidence was engineered and utilized. The stabbing bench is also equipped with magnetic sensors and a UK Home Office Scientific Development Branch (HOSDB)/P1/B sharpness engineered knives to measure the impact velocity and exerted impact energy respectively. A silicon compound was utilized to imprint the Back Face Signature (BFS) on the backing material after every specimen test. Each silicon print was then scanned, digitized, and precisely measured to evaluate the stab response and performance of the specimen based on different performance variables, including Depth of Trauma (DOT), Depth of Penetration (DOP), and Length of Penetration (LOP). Besides, the post-impact surface failure modes of the fabrics were also measured using Image software and analyzed at the microscale level. The results show stab angle of incidence greatly influences the stab response and performance of protective textiles. The outcome of the study could provide not only valuable insights into understanding the stab response and capabilities of protective textiles under different angle of incidence, but also provide valuable information for protective textile manufacturer, armor developer and stab testing and standardizing organizations to consider the angle of incidence while developing, testing, optimizing, and using protective textiles in various applications.
Fuente: https://www.sciencedirect.com
