En el desfile del “China National Day” de Oct19, ese país exhibió las principales tecnologías en desarrollo e incorporadas, tendientes a convertirlos en la fuerza dominante en caso de un eventual conflicto en la región Asia – Pacífico. Se pudo observar que se han priorizado sistemas de alta tecnología tales como: Vehículos autónomos. Armas guiadas de precisión. ICBM y Misiles hipersónicos, así como sofisticados sistemas de Guerra Electrónica.
On October 1, the People’s Republic of China (PRC) celebrated the seventieth anniversary of its founding. Among the pageantry was a military parade in which the People’s Liberation Army (PLA) performed a highly orchestrated show of strength, exhibiting many of its strategic weapon systems. While China has regularly held such displays in the past, this year’s parade was exceptional for the number and diversity of new, high-tech weapons. New systems represented 40 percent of the weapons showcased.i Although a carefully choreographed piece of propaganda, the parade nevertheless provides clues about China’s emerging warfighting doctrine. In doing so, it also revealed a nation seeking to supplant the United States as the dominant military and technological power in the Asia-Pacific region.
China’s messaging around the procession emphasized China’s focus on “informationized armed forces” and attaining technological dominance.ii Indeed, many of the systems seen on October 1 seem intended to bolster China’s information, surveillance, and reconnaissance (ISR) and conventional precision strike capabilities. Others appear aimed at degrading U.S. capabilities in those same areas. Specifically, the weaponry China displayed on October 1 signal China’s interest in:
- Augmenting its precision-guided strike complex with improved ISR capabilities;
- Disrupting U.S. communication and information networks, threatening U.S. situational awareness and precision targeting;
- Holding U.S. and allied forces in the Asia-Pacific at risk with maneuvering munitions that challenge existing U.S. air and missile defenses; and
- Increasing undersea situational awareness, challenging the dominance of U.S. submarines.
In concert with these new conventional capabilities, China demonstrated several new or upgraded nuclear delivery systems. These mobile intercontinental ballistic missiles (ICBM) and submarine-launched ballistic missiles (SLBM) appear primarily intended to enhance the survivability and penetration capacity of China’s nuclear forces. Moreover, the display served to highlight the technical sophistication and modernity of China’s strategic missile force, a central consideration in Chinese nuclear decisionmaking.iii
Despite their increased sophistication, the nuclear delivery vehicles displayed fill similar roles to previous systems, signaling continuity with existing Chinese limited nuclear doctrine.iv This is in contrast with Russia, which is significantly expanding the scope and ambition of its nuclear doctrine. And while U.S. intelligence projects that China could double the size of its nuclear force in the coming decade, its arsenal will remain a fraction of the size of U.S. and Russian forces.v However, observers remain concerned over the dual-capability of China’s medium-range systems. China’s DF-26, for example, has both conventional and nuclear variants, and similar uncertainties persist over the nuclear capability of China’s hypersonic glide vehicle (HGV) programs. Chinese commentators made a point, however, to characterize its new DF-17 HGV as conventional-only.
China’s embrace of high-tech “informationized” warfare reflects the many lessons the PLA has learned from observing U.S. operations over the past two decades. During this period, the United States enjoyed the uncontested use of advanced ISR and C2 networks. The PLA has watched this advantage become a dependency, one which it is now looking to exploit. This brief will provide an overview of the systems and capabilities the PRC emphasized in its 70th anniversary celebration and attempt to explain how they fit into China’s military vision. These include electronic warfare, drones, and China’s array of new missiles.
Electronic Warfare
Source: Global Times
Consistent with its goal of degrading U.S. ISR, the PLA exhibited a large variety of electronic warfare systems.vi These included numerous ground-based jammers.vii The PLA also revealed two varieties of aerial jamming drones, including an electronic-warfare variant of its ASN-207 UAV, which previously only performed reconnaissance missions. According to Chinese state media, this variety of electronic warfare platforms highlighted China’s efforts “to seize the right to control information” during military operations.viii
The United States’ wireless battle networks are essential for completing its “kill chain,” the process of integrating intelligence, command, and fire control data to employ precision-guided weapons. By investing in electronic warfare assets, the PLA aims to sever a vital link in this chain. While a focus on information denial has long remained an element of PLA doctrine, this display of jamming units showcased the PLA’s information denial efforts across multiple domains—intended to disrupt U.S. communications on land, air, and sea.ix Underscoring this point was the presence of the PLA Strategic Support Force, China’s newly-formed cyber-, space-, and electronic-warfare service. The October 1 event was the first appearance of the PLASSF in a military parade.x

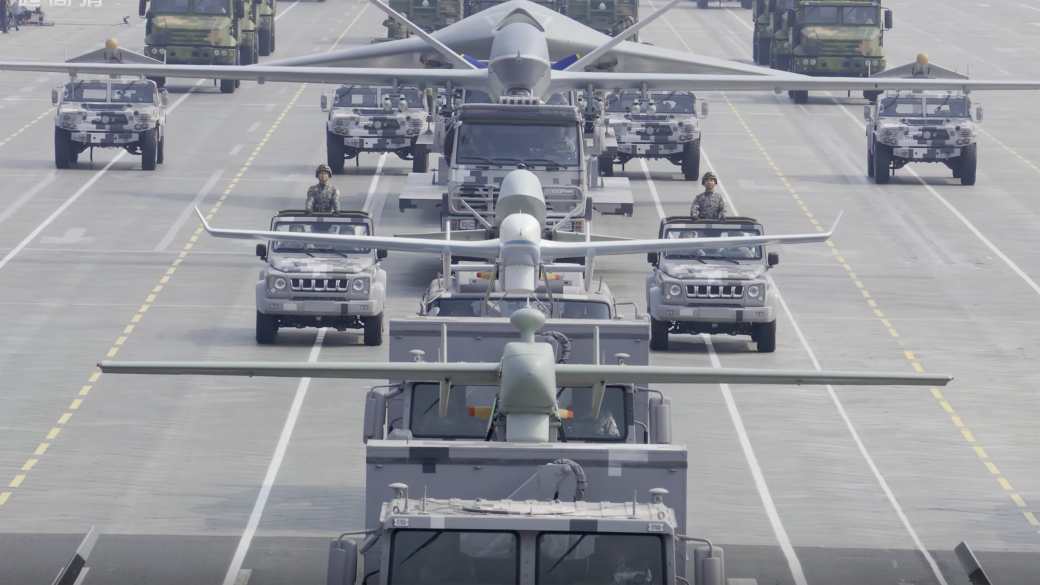

Drones
Source: PLA
Several new drones also featured in the display. China revealed the GJ-11 (Gongji [“attack”]-11), a carrier-based unmanned combat air vehicle (UCAV) based off the PLA’s Lijian (“Sharp Sword”) testbed.xi Featuring a stealthy exhaust section and revised aerodynamics, the GJ-11 is designed to conduct long-range strikes and supply targeting information to Chinese missile forces.
Source: PLA
In addition, China revealed the WZ-8, an air-launched supersonic drone. Likely released from a bomber, the rocket-propelled WZ-8 is intended to conduct reconnaissance and battle damage assessment on U.S. carrier strike groups.xii Though the WZ-8 is unlikely to possess the loitering capability needed to support missile targeting, it could aid Chinese aircraft in locating and targeting enemy surface forces. According to media reports, the drone may have already entered service with the PLA’s Eastern Theatre Command.xiii
Source: Xinhua
Finally, China displayed a new unmanned underwater vehicle (UUV). Designed to conduct “battlefield environment reconnaissance” and “enemy surveillance,” the drone represents a further development in China’s anti-submarine and underwater ISR capabilities. Although its effectiveness remains uncertain, it does show Chinese interest in chipping away at U.S. undersea dominance.
China’s limited ability to detect and track U.S. theater forces has previously constrained its strike potential.xiv By procuring new drones, satellites, and unmanned naval intelligence platforms, Beijing aims to complete its own kill chain.
Missiles
The parade also showcased China’s investment in advanced missiles, revealing six previously unseen missile systems. These included three new cruise missiles (YJ-12B, YJ-18, and CJ-100), two ballistic missiles (JL-2 and DF-41), and a hypersonic glide vehicle (DF-17). China also showed several other recent systems, including the DF-31AG and DF-26.
YJ-12B, YJ-18 /-18A
Source: PLA
First revealed in 2015, the YJ-12 is a ramjet-propelled supersonic anti-ship missile with an estimated range of 500 km.xv The parade marks the first public appearance of the YJ-12B, a ground-launched variant of the missile. According to media reports, the YJ-12B has already entered Chinese service.
Source: PLA
The YJ-18, meanwhile, is a subsonic anti-ship missile with an estimated range between 220 and 540 km.xvi After cruising to the target under turbojet propulsion, the YJ-18 releases a rocket-propelled warhead which accelerates to supersonic velocities. Bearing an external resemblance to Russia’s 3M54TE cruise missile, the YJ-18 had been known but not publicly showcased prior to the parade.xvii
CJ-100/DF-100
Source: “Countries,” Federal Reserve Bank of St. Louis (FRED), https://fred.stlouisfed.org/categories/32264.
Unknown to the public before the National Day celebration, the CJ-100 is most likely a long-range, supersonic cruise missile.xviii Footage revealed days before the parade indicates that the missile is vertically launched and uses ramjet propulsion.xix Little else is publicly known about it.
DF-17
Source: PLA
The DF-17, a “short to medium-range” ballistic missile, combines a DF-15-like rocket booster with a hypersonic boost-glide vehicle.xx First tested in January 2014, the missile had not been publicly displayed until the October 1 parade.xxi Public photographs of a similar hypersonic test article—the WU-14/DF-ZF—first surfaced in late 2017.xxii
According to Chinese state media, the DF-17 is intended to defeat U.S. and allied missile defenses, which struggle to engage low-flying, maneuvering threats. Unlike traditional ballistic missiles, hypersonic glide vehicles can modify their trajectory through most of their flight, creating uncertainty over where to commit defensive interceptors. This, however, makes boost-glide vehicles vulnerable to point defenses. Traveling at slower velocities than their ballistic counterparts, hypersonic glide vehicles retain less energy to spend on evasive maneuvers in terminal flight.xxiii
DF-26
Source: Xinhua
First unveiled in 2015, the DF-26 is an intermediate-range ballistic missile (IRBM) with a 4,000 km range.xxiv The missile can carry a variety of nuclear and conventional payloads and is typically seen with a maneuvering warhead.xxv Such a payload may aid in penetrating terminal missile defenses or striking mobile targets. According to Chinese media sources, China’s defense industry began developing the missile as early as 2008.xxvi China first tested the DF-26 in 2016, conducting its latest flight test in January 2019.xxvii China reportedly tested a rumored anti-ship variant, the DF-26B, in 2017.xxviii To successfully strike a moving target like a ship with a ballistic missile, however, would likely require an ISR asset providing near-real-time targeting information, most likely an unmanned aerial system.
DF-5B
Source: PLA
During the parade, China also displayed an upgraded variant of the DF-5, its oldest ICBM.xxix Designated the DF-5B, the missile entered service in 2015 and is the first variant of the 1970s-era DF-5 to carry multiple independently-targeted reentry vehicles (MIRV). Unlike China’s newer missiles, the DF-5B is silo-based and takes a considerable time to move or fire.
Despite analysts’ expectations, China did not showcase the DF-5C, a modernized DF-5 variant with a 10-MIRV payload.xxx Beijing may have tested the DF-5C as recently as 2017.xxxi Such an absence may reflect China’s emphasis on procuring new technologies; while the DF-5C test served to signal China’s resolve and demonstrate its ability to miniaturize nuclear warheads, China may not intend to further develop the DF-5 platform.xxxii Though the “old-fashioned” DF-5-series remains a core element of China’s current force, its underlying technology has become nearly obsolete.xxxiii
DF-31AG
Source: PLA
Beijing’s inclusion of DF-31AG missiles in the parade reflects its focus on modernizing its nuclear forces. The DF-31 is a solid-fueled ICBM which entered Chinese service in 2006.xxxiv An upgraded variant, the DF-31A, possesses a range of up to 11,700 km and is fitted with a 1-3 megaton nuclear warhead. First displayed in mid-2017, the DF-31AG is the latest upgrade of the DF-31A, equipped with a ruggedized launch vehicle for traversing unpaved terrain.xxxv No longer limited to China’s roads, the DF-31AG could disperse to more remote areas, making it difficult to target.
JL-2
Source: PLA
The National Day Parade also marked the first public appearance of the JL-2, a submarine-launched ballistic missile which underwent a troubled development period from 1983 to 2015.xxxvi This public display—combined with repeated declarations of the missile’s maturity—reflect Beijing’s growing confidence in its sea-based deterrent. Derived from the DF-31, the JL-2 reportedly possesses a maximum range of over 8,000 km and may be MIRV-capable.
DF-41
Source: PLA
The DF-41 ICBM represents the culmination of China’s strategic modernization efforts, occupying the final position in the 70th anniversary procession. While the missile’s existence was reported by the Pentagon since 1997, no complete images of the system became available until two missile brigades—armed with eight missiles each, appeared at the National Day parade.xxxvii The future “mainstay” of China’s nuclear forces, the road-mobile DF-41 reportedly possesses an operational range of 15,000 km and is MIRV-capable.xxxviii The missile will likely share key technologies with the JL-3, China’s next-generation SLBM.
Conclusion
China’s exhibition of new drones, electronic warfare systems, and missiles reflects its priority on developing advanced technologies, exploiting U.S. vulnerabilities, and completing its regional reconnaissance-strike complex.xxxix While Beijing can range U.S. theater forces with long-range missiles, its investments in radar and reconnaissance drones have enhanced its ability to target them.xl Meanwhile, China’s procurement of advanced electronic warfare systems threatens to deny the United States these same advantages, jamming U.S. ISR platforms and decoupling its kill chain.
Through its parade, China has offered the clearest indication of its vision for future warfare. Jammer-equipped aircraft, trucks, and ships will blind U.S. sensors. A networked complex of drones, radars, and satellites will feed vital targeting information to China’s missile forces. And future hypersonic weapons, flying fast and low, will evade U.S. missile defenses.
Offsetting China’s growing capabilities calls for investment into more than just comparable technologies. It will require swift evolution of defensive measures like hardened datalinks and air and missile defenses. Furthermore, maintaining U.S. military advantages will require a nimbler defense acquisition process that can match the pace of China’s rapid development and fielding. Maintaining strong alliances in the Asia Pacific and taking regional leadership militarily and economically will also be crucial. The PRC’s vision of “informationized warfare” may well represent the most advanced military threat that the United States and its allies will face in the twenty-first century. U.S. defense priorities should reflect this gravity.
Fuente: https://www.csis.org
